Longi New Arrival Himo
Overview Product Description ELECTRICAL DATA(STC) Detailed Photos Core Advantages product details Solar photovoltaic pan
Description
Basic Info.
| Model NO. | LR5-54HTH |
| Material | Monocrystalline Silicon |
| Weight | 20.8kg |
| Output Cable | 4mm2 Symmetrical Lengths 3 |
| Panel Efficiency | 21.40% |
| Noct Temperature | 44ºC ±2ºC |
| Per 40′ HQ Container | 806 PCS |
| Packing | 31PCS/Pallet |
| Connector | Mc4 Compatible |
| Frame | Anodized Aluminium Alloy |
| Model Number | Lr5-54hth |
| No. of Cells | 108 |
| Panel Dimensions | 1722X1134X30mm |
| Junction Box | IP 68 3 Diodes |
| Cell Size | 182*91mm |
| Trademark | LONGi |
| Origin | Anhui, Hefei |
| HS Code | 8501610000 |
| Production Capacity | 50000pieces/Years |
Product Description
Product Description
ELECTRICAL DATA(STC)
| Module Type | LR5-54HTH-415M | LR5-54HTH-420M | LR5-54HTH-425M | LR5-54HTH-430M |
| Rated output (Pmp/Wp) | 415 | 420 | 425 | 430 |
| Short Circuit Current(Isc) | 13.92A | 14.00A | 14.07A | 14.15A |
| Open Circuit Voltage(Voc) | 38.53V | 38.73V | 38.93V | 39.13V |
| Maximum Power Current(Impp) | 12.88A | 12.95A | 13.03A | 13.10A |
| Maximum Power Voltage(Vmpp) | 32.24V | 32.44V | 32.64V | 32.84V |
| Module efficiency(%) | 21.3% | 21.5% | 21.8% | 22.0% |
| Power Tolerance (W) | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Mechanical Data of Solar Module | |
| Cell orientation | 108Cells |
| Frame | Anodized Aluminium |
| Frame Thickness | 35mm |
| Weight of module | 20.8kg |
| Module Dimensions | 1722X1134X30mm |
| Junction Box | IP68, three diodes |

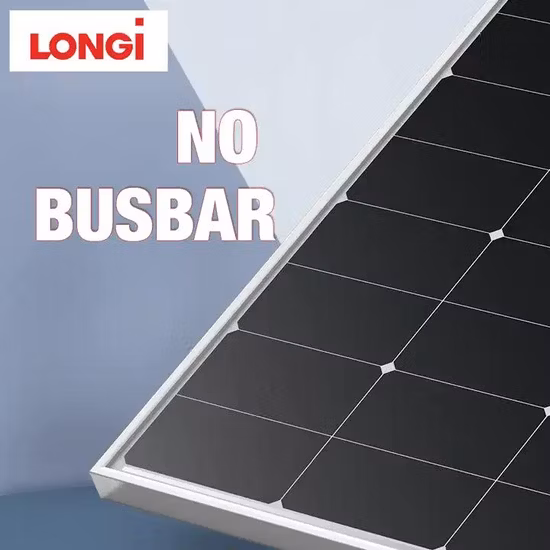

Detailed Photos
Core Advantages
1.Module efficiency up to 17.2% achieved through advanced cell technology andmanufacturing capabilities2.Color sorting ensure consistent appearance on each module3.High Efficiency PV Cells4.High PID resistantEVA
EVA.>Excellent light transmittance and transparency>Excellent long term adhesion to glass,mental and polymer backsheet.>Excellent durability,such as weather resistance,high-temperature,high- humidity and UV light resistance.BACKSHEET
>Good electrical insulation and breakdown>Excellent UV resistance and aging resistance>Made-to-order backsheet with width up to1300mm>Double-side fluorocarbon strcture(PVF/ PET /PVF)with the integration of Tedlar(DuPont).GLASS
>Precise edge processing and cutting>Minimal optical distortion and non- existent roller marks>Physically tempered ultrathin glass presents the idealcombination of durability and flexibility. >Higher light transmittance ensures higher module power output.JUNCTION BOX.
>The outer casting(junction box,connector)has the strong ability of anti-aging.
>The produce to be appropriate for using under any adverse out-door circumstances.
>The ultrathin structure
design,internal irrigation rubber seal.
Company Profile
This is the picture of our company when we participated in the exhibition.We are a manufacturer specialized in the production of solar panels. The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.
Our Advantages
We can provide all popular solar panel models in the market, such as 410W, 455W and 550W etc.The company' s advantages are as follows. 1. OEM is accepted.2. We have reliable quality and competitive price. 3. We are Initial Distributors of tier 1 solar panels,LONGi,Jinko,Trina,JA,GCL and Yingli.4.We are also a distributor of Huawei inverters.Our price is more favorable and the delivery time is faster.
FACTORY
FROM MANUFACTURING TO INTELLIGENT MANUFACTURING

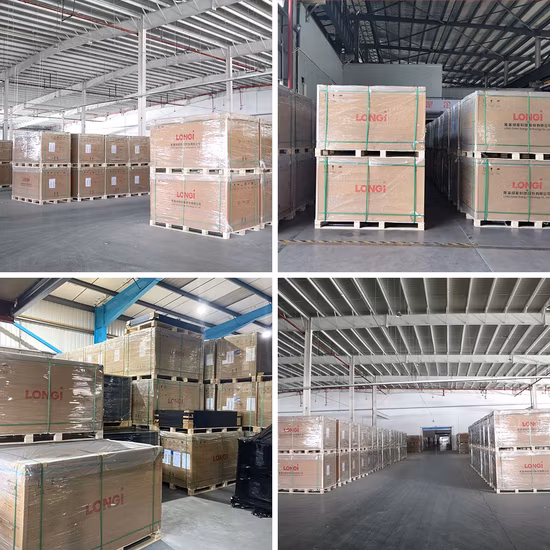

AUTOMATIC MANUFACTURING PINERGY module factory can work for various advanced technology production requirements,and achieved the transition from manufacturing to intelligent manufacturingPackaging & Shipping

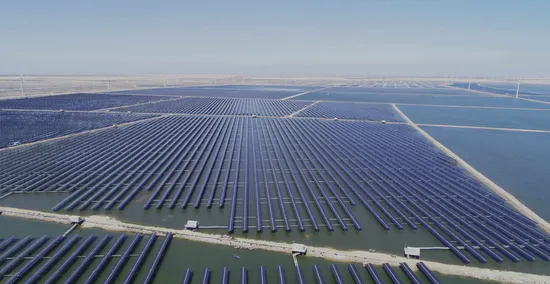

Pinergy's business footprint covers more than 70 countries around the world,with more than 150 industry-leading partners.Project case Power station projectThe brands we work with
FAQ
1. What's your payment terms?
TT,Letter of Credit,Paypal,Western Union etc. 2. Could you send free sample?Your sample fee will be returned when your place next order.3.Can we print our own logo?Yes absolutely.
4. What are the advantages of your company?We are new factory ,now we control thin benifit for developing customers , price ,quality and service will never let customers down!!
